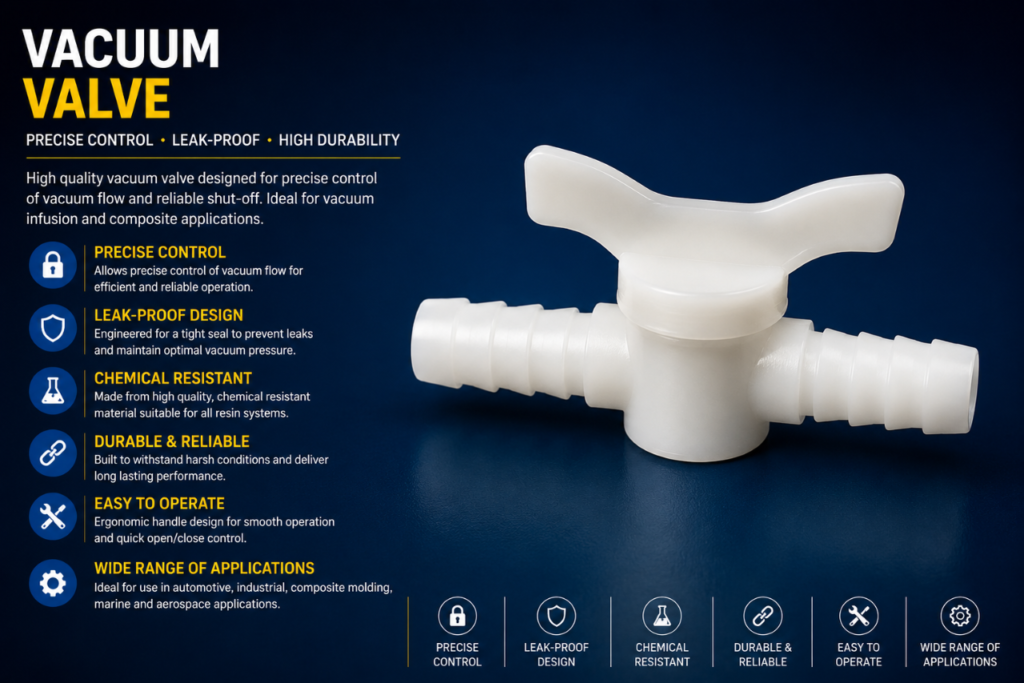

Vacuum Valve
Description
Earth Composites’ Vacuum Valve is a precision-engineered vacuum control valve designed for vacuum bagging, vacuum infusion, RTM, VARTM, prepreg curing, and advanced composite manufacturing applications. Manufactured from high-strength engineering-grade aluminum, brass, or reinforced nylon, it provides precise vacuum regulation, secure shut-off, and leak-free operation throughout the infusion and curing process. Compatible with vacuum pumps, resin traps, PVC hoses, silicone hoses, nylon braided hoses, and vacuum ports, it ensures stable vacuum pressure and reliable process control for wind energy, aerospace, marine, automotive, railway, and industrial composite manufacturing.
Technical Specifications
| Property | Specification |
|---|---|
| Material | Aluminium Alloy / Brass / Reinforced Engineering Nylon |
| Product Type | Vacuum Valve |
| Valve Type | Manual Ball Valve / Shut-Off Valve |
| Connection Type | Barbed Hose Connection / Threaded Connection |
| Available Sizes | 6 mm, 8 mm, 10 mm, 12 mm & Custom Sizes Available |
| Vacuum Rating | Up to -1 Bar (-100 kPa) |
| Working Pressure | Suitable for Full Vacuum & Low Pressure Systems |
| Operating Temperature | -20°C to +150°C (Material Dependent) |
| Seal Material | NBR / Viton / Silicone O-Ring (Optional) |
| Leakage Performance | 100% Airtight & Leak-Free Operation |
| Chemical Resistance | Compatible with Epoxy, Polyester, Vinyl Ester Resins, Solvents & Industrial Chemicals |
| Flow Control | Precision Vacuum Regulation & Shut-Off |
| Compatible Equipment | Vacuum Pumps, Resin Traps, Vacuum Ports, Resin Inlet Ports & Vacuum Hoses |
| Applications | Vacuum Bagging, Vacuum Infusion, RTM, VARTM, Prepreg Processing & Resin Transfer Systems |
| Industries | Wind Energy, Aerospace, Marine, Automotive, Railway & Industrial Composite Manufacturing |
| Storage Condition | Store in a clean, dry place away from moisture, dust, and corrosive chemicals. |
| Shelf Life | Unlimited Under Recommended Storage Conditions |
