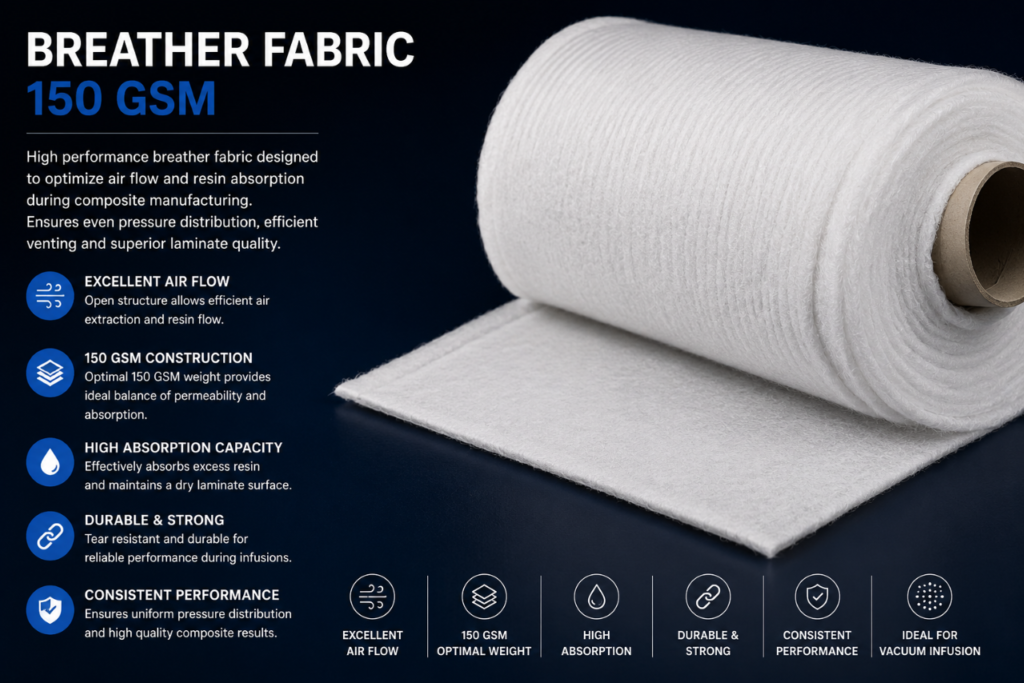

Breather Fabric 150 GSM
Description
Earth Composites’ Breather Fabric 150 GSM is a high-performance non-woven polyester breather fabric engineered for vacuum bagging, vacuum infusion, prepreg curing, RTM, VARTM, and autoclave composite manufacturing. Designed to ensure uniform air evacuation and even vacuum pressure distribution, it effectively absorbs excess resin while promoting superior laminate consolidation and minimizing void formation. Manufactured from premium polyester fibers, it offers excellent air permeability, thermal stability, and compatibility with epoxy, polyester, and vinyl ester resin systems. Ideal for wind energy, aerospace, marine, automotive, railway, and industrial composite applications requiring consistent vacuum performance and high-quality composite production.
Technical Specifications
| Property | Specification |
|---|---|
| Material | 100% Non-Woven Polyester Fabric |
| Product Type | Breather Fabric |
| Fabric Weight | 150 GSM (±5%) |
| Construction | Needle-Punched Non-Woven |
| Thickness | Approx. 1.60 mm |
| Air Permeability | High Air Flow for Uniform Vacuum Distribution |
| Resin Absorption | Excellent Excess Resin Absorption Capacity |
| Width | Up to 2000 mm (Custom Width Available) |
| Roll Length | 100 m / Custom Roll Length Available |
| Color | White |
| Operating Temperature | Up to 220°C |
| Compression Resistance | Excellent Vacuum Compression Stability |
| Resin Compatibility | Epoxy, Polyester & Vinyl Ester Resins |
| Process Compatibility | Vacuum Bagging, Vacuum Infusion, RTM, VARTM, Prepreg & Autoclave |
| Applications | Wind Turbine Blades, Aerospace, Marine, Automotive, Railway, FRP Panels & Industrial Composites |
| Storage Condition | Store in a cool, dry place away from direct sunlight, moisture, and contaminants. |
