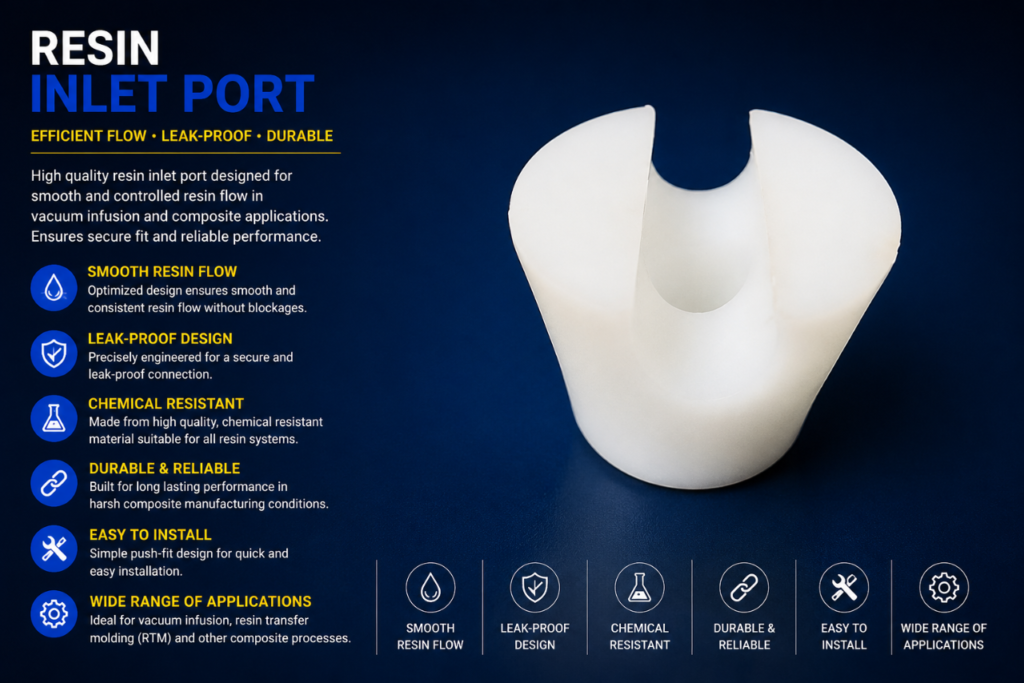

Resin Inlet Port
Description
Earth Composites’ Resin Inlet Port is a high-performance vacuum infusion resin feed connector designed for vacuum bagging, vacuum infusion, RTM, VARTM, resin transfer, and advanced composite manufacturing applications. Manufactured from premium engineering-grade nylon (PA), polypropylene (PP), or aluminum alloy, it provides a secure, leak-free connection between the resin supply line and the vacuum bag, ensuring controlled resin flow and efficient laminate infusion. Compatible with epoxy, polyester, vinyl ester, and polyurethane resin systems, it is widely used in wind energy, aerospace, marine, automotive, railway, and industrial composite manufacturing where precision resin delivery and vacuum integrity are essential.
Technical Specifications
| Property | Specification |
|---|---|
| Material | Engineering Nylon (PA), Polypropylene (PP) or Aluminium Alloy |
| Product Type | Resin Inlet Port |
| Connection Type | Barbed Hose Connection with Vacuum Bag Flange |
| Available Sizes | 6 mm, 8 mm, 10 mm, 12 mm & Custom Sizes Available |
| Flow Design | Optimized for Smooth & Controlled Resin Transfer |
| Vacuum Compatibility | 100% Vacuum Infusion & Vacuum Bagging Compatible |
| Working Pressure | Suitable for Vacuum & Low Pressure Resin Transfer Systems |
| Operating Temperature | -20°C to +120°C (Material Dependent) |
| Chemical Resistance | Compatible with Epoxy, Polyester, Vinyl Ester & Polyurethane Resin Systems |
| Leak Performance | Airtight, Leak-Free Vacuum Seal |
| Installation | Quick Installation & Easy Removal |
| Compatible Hoses | PVC Hose, Nylon Braided Hose, Transparent Hose, Steel Wire Hose & Feed Hose Pipe |
| Process Compatibility | Vacuum Bagging, Vacuum Infusion, RTM, VARTM & Resin Transfer Molding |
| Applications | Wind Turbine Blades, Marine Structures, Aerospace Components, Automotive Parts & Industrial Composite Manufacturing |
| Storage Condition | Store in a clean, dry place away from direct sunlight and corrosive chemicals. |
| Shelf Life | Unlimited Under Recommended Storage Conditions |
