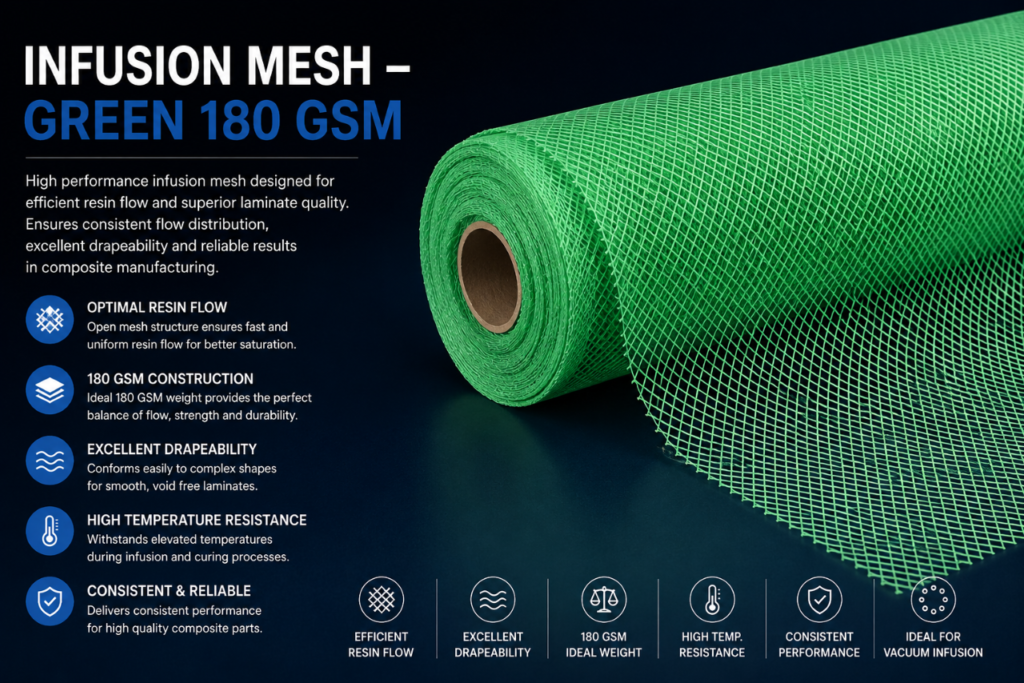

Infusion Mesh – Green 180 GSM
Description
Earth Composites’ Infusion Mesh – Green 180 GSM is a premium flow media engineered to maximize resin distribution during vacuum infusion, vacuum bagging, RTM, VARTM, and composite manufacturing processes. Designed with an optimized open mesh structure, it ensures faster resin flow, minimizes dry spots, and improves laminate consistency across large composite components. Manufactured from high-quality polymer material, it is compatible with epoxy, polyester, and vinyl ester resin systems, making it an ideal solution for wind energy, aerospace, marine, automotive, railway, and industrial composite applications requiring high productivity and superior infusion performance.
Technical Specifications
| Property | Specification |
|---|---|
| Material | High-Performance HDPE / Polyester Flow Media |
| Product Type | Infusion Mesh (Green) |
| Fabric Weight | 180 GSM (±5%) |
| Mesh Construction | Warp Knitted Open Mesh |
| Thickness | Approx. 1.45 mm |
| Width | Up to 1800 mm (Custom Width Available) |
| Roll Length | 100 m / Custom Roll Length Available |
| Color | Green |
| Operating Temperature | Up to 180°C |
| Resin Flow Rate | High-Speed Uniform Resin Distribution |
| Vacuum Compatibility | Suitable for Full Vacuum Infusion Processes |
| Resin Compatibility | Epoxy, Polyester & Vinyl Ester Resins |
| Chemical Resistance | Excellent Chemical & Resin Resistance |
| Process Compatibility | Vacuum Infusion, Vacuum Bagging, RTM, VARTM & Light RTM |
| Applications | Wind Turbine Blades, Marine, Aerospace, Automotive, Railway, FRP Panels & Industrial Composites |
| Storage Condition | Store in a cool, dry place away from moisture, dust, and direct sunlight. |
