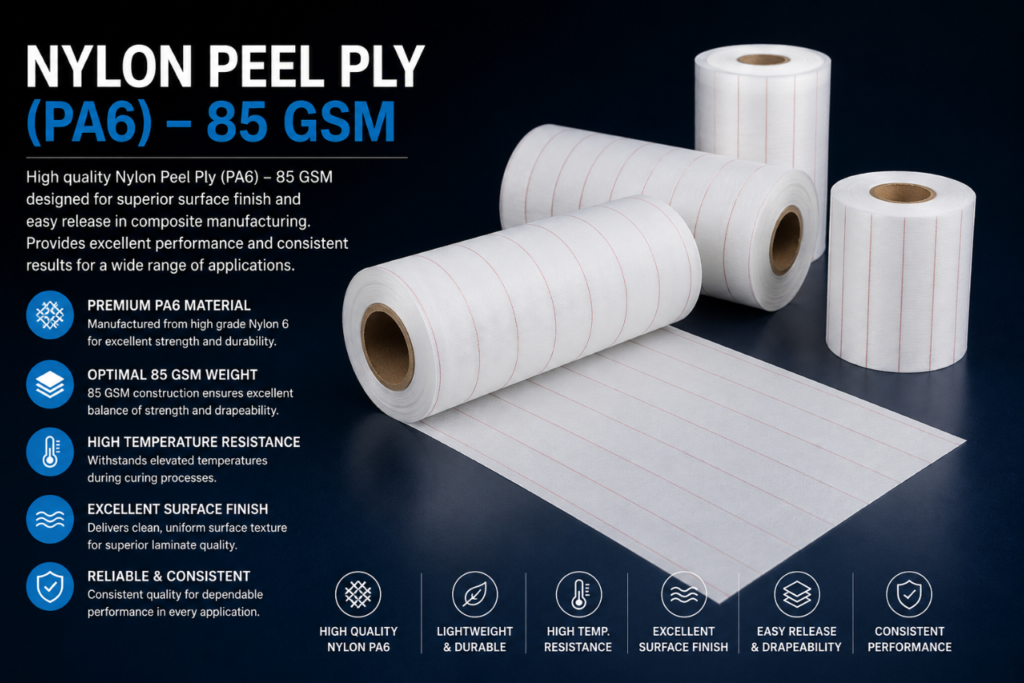

Nylon Peel Ply (PA6) – 85 GSM
Description
Earth Composites’ Nylon Peel Ply (PA6) – 85 GSM is a lightweight, high-performance polyamide peel ply fabric developed for vacuum bagging, vacuum infusion, RTM, VARTM, prepreg, and autoclave composite manufacturing. Made from premium PA6 (Polyamide 6) woven fabric, it creates a clean, textured laminate surface that enhances secondary bonding while eliminating sanding after curing. Its excellent drapability, clean peel characteristics, and compatibility with epoxy, polyester, and vinyl ester resin systems make it an ideal choice for wind energy, aerospace, marine, automotive, and industrial composite applications requiring precision, efficiency, and superior surface preparation.
Technical Specifications
| Property | Specification |
|---|---|
| Material | 100% PA6 (Polyamide 6) Woven Nylon Fabric |
| Product Type | Nylon Peel Ply (PA6) |
| Fabric Weight | 85 GSM (±5%) |
| Weave Pattern | Plain Weave |
| Thickness | 0.13 – 0.15 mm |
| Width | Up to 2000 mm (Custom Width Available) |
| Roll Length | 100 m / Custom Roll Length Available |
| Color | White with Red Tracer (Custom Available) |
| Operating Temperature | Up to 200°C |
| Tensile Strength | High Strength PA6 Fabric |
| Elongation | Excellent Flexibility & Drapability |
| Silicone Content | Silicone-Free |
| Peel Performance | Clean & Easy Removal After Cure |
| Resin Compatibility | Epoxy, Polyester & Vinyl Ester Resins |
| Process Compatibility | Vacuum Bagging, Vacuum Infusion, RTM, VARTM, Prepreg & Autoclave |
| Applications | Wind Energy, Aerospace, Marine, Automotive & Industrial Composites |
| Storage Condition | Store in a cool, dry place away from direct sunlight, moisture, and dust. |
