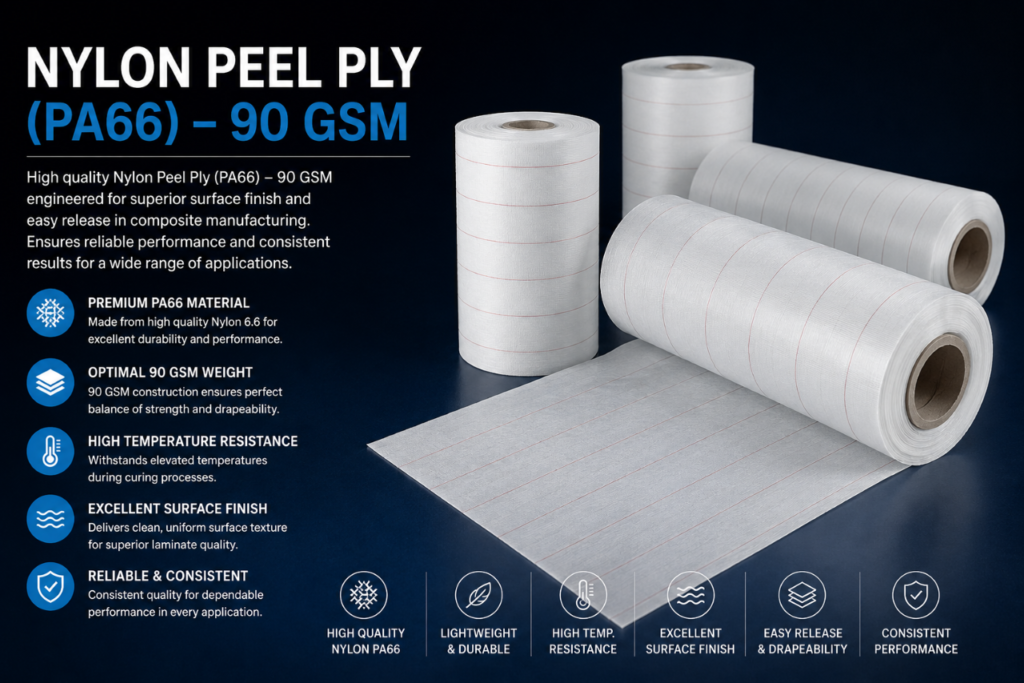

Nylon Peel Ply (PA66) – 90 GSM
Description
Earth Composites’ Nylon Peel Ply (PA66) – 90 GSM is a high-performance polyamide peel ply fabric specially designed for vacuum bagging, vacuum infusion, RTM, VARTM, prepreg, and autoclave composite manufacturing. Manufactured from premium PA66 nylon fibers, it provides a clean, textured laminate surface that improves secondary bonding while eliminating sanding after curing. With excellent heat resistance, easy peel characteristics, and compatibility with epoxy, polyester, and vinyl ester resin systems, it is an ideal solution for wind energy, aerospace, marine, automotive, and industrial composite applications requiring precision, efficiency, and superior laminate quality.
Technical Specifications
| Property | Specification |
|---|---|
| Material | 100% PA66 (Polyamide 66) Woven Nylon Fabric |
| Product Type | Nylon Peel Ply (PA66) |
| Fabric Weight | 90 GSM (±5%) |
| Weave Pattern | Plain Weave |
| Thickness | 0.13 – 0.16 mm |
| Width | Up to 2000 mm (Custom Width Available) |
| Roll Length | 100 m / Custom Roll Length Available |
| Color | White with Red Tracer (Custom Available) |
| Operating Temperature | Up to 230°C |
| Tensile Strength | High Strength PA66 Fabric |
| Silicone Content | Silicone-Free |
| Peel Performance | Clean & Easy Removal After Cure |
| Resin Compatibility | Epoxy, Polyester & Vinyl Ester Resins |
| Process Compatibility | Vacuum Bagging, Vacuum Infusion, RTM, VARTM, Prepreg & Autoclave |
| Applications | Wind Energy, Aerospace, Marine, Automotive & Industrial Composites |
| Storage Condition | Store in a cool, dry place away from moisture, dust and direct sunlight. |
