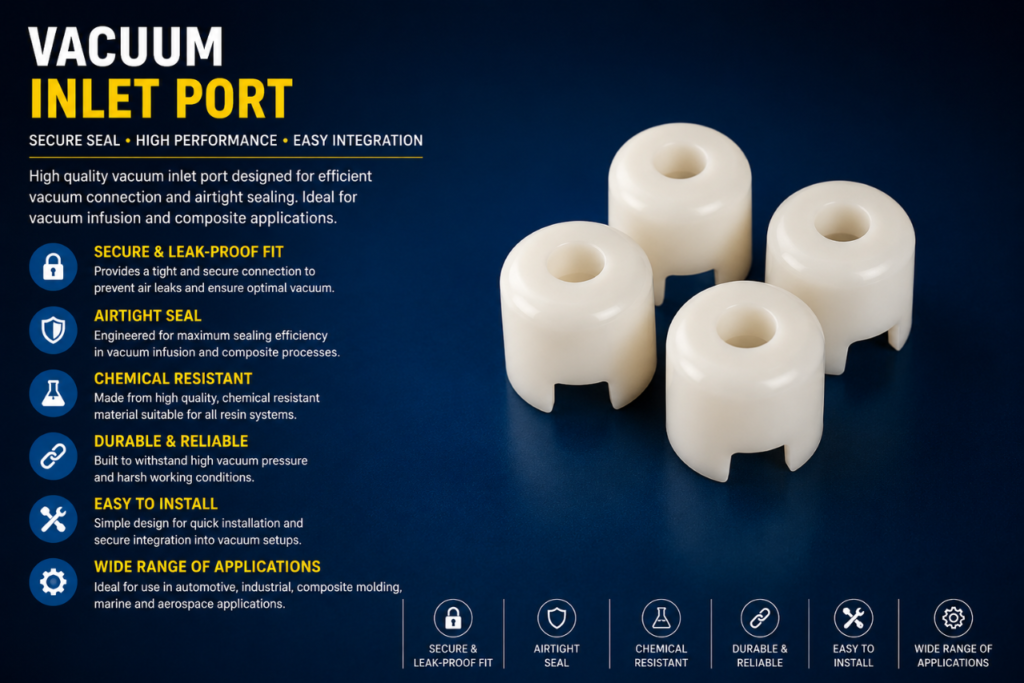

Vacuum Inlet Port
Description
Earth Composites’ Vacuum Inlet Port is a premium vacuum bag connector designed for vacuum bagging, vacuum infusion, RTM, VARTM, prepreg, and advanced composite manufacturing applications. Manufactured from high-strength engineering-grade Nylon (PA), Polypropylene (PP), or Aluminum Alloy, it provides a secure, airtight connection between the vacuum pump and the vacuum bag, ensuring stable vacuum pressure and efficient air evacuation throughout the curing process. Compatible with vacuum hoses, PVC hoses, nylon braided hoses, silicone hoses, and steel wire hoses, it is widely used in wind energy, aerospace, marine, automotive, railway, and industrial composite manufacturing.
Technical Specifications
| Property | Specification |
|---|---|
| Material | Engineering Nylon (PA), Polypropylene (PP) or Aluminium Alloy |
| Product Type | Vacuum Inlet Port / Vacuum Port Connector |
| Connection Type | Barbed Hose Connection with Vacuum Bag Flange |
| Available Sizes | 6 mm, 8 mm, 10 mm, 12 mm, 16 mm & Custom Sizes Available |
| Working Pressure | Designed for Full Vacuum Systems |
| Vacuum Rating | Up to -1 Bar (-100 kPa) |
| Vacuum Compatibility | 100% Vacuum Bagging, Vacuum Infusion, RTM & VARTM Compatible |
| Operating Temperature | -20°C to +120°C (Material Dependent) |
| Chemical Resistance | Resistant to Epoxy, Polyester, Vinyl Ester Resins, Solvents & Industrial Chemicals |
| Seal Performance | Airtight, Leak-Free Vacuum Seal |
| Installation | Quick Installation & Easy Removal |
| Compatible Hoses | PVC Hose, Nylon Braided Hose, Transparent Hose, Silicone Hose & Steel Wire Hose |
| Applications | Vacuum Bagging, Vacuum Infusion, RTM, VARTM, Prepreg Processing & Resin Transfer Systems |
| Industries | Wind Energy, Aerospace, Marine, Automotive, Railway & Industrial Composite Manufacturing |
| Storage Condition | Store in a clean, dry place away from direct sunlight, moisture, and corrosive chemicals. |
| Shelf Life | Unlimited Under Recommended Storage Conditions |
