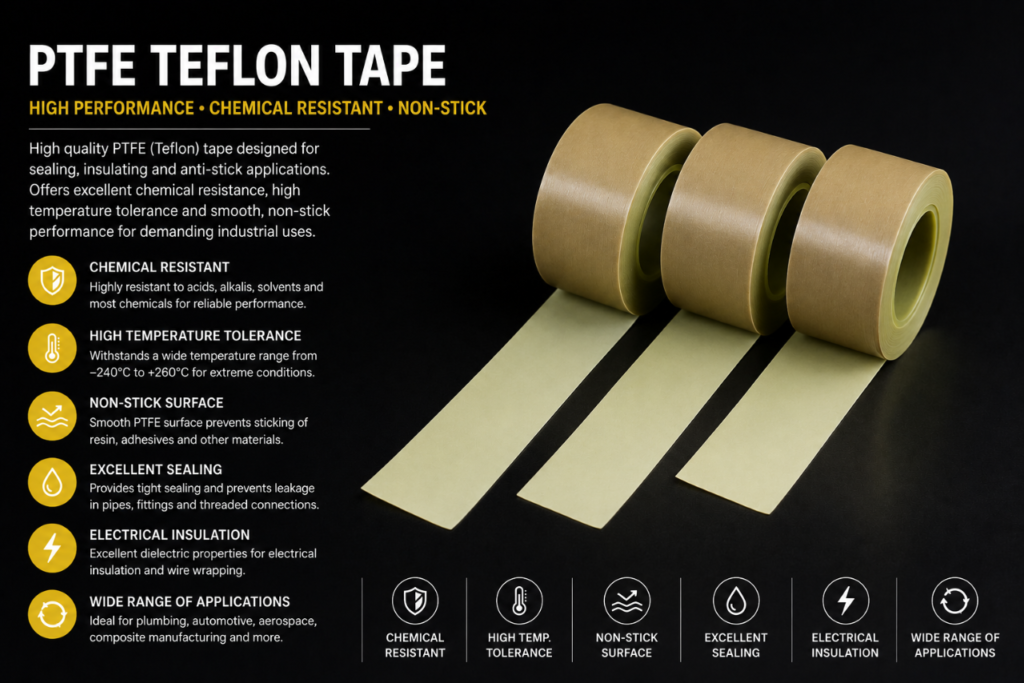

PTFE Teflon Tape
Description
Earth Composites’ PTFE Teflon Tape is a high-performance heat-resistant release tape designed for composite manufacturing, vacuum bagging, prepreg processing, autoclave curing, mold tooling, and industrial applications. Manufactured from premium PTFE (Polytetrafluoroethylene) with a high-temperature silicone adhesive, it provides excellent non-stick performance, clean release, superior chemical resistance, and exceptional dimensional stability. Suitable for epoxy, polyester, and vinyl ester resin systems, it ensures reliable protection of molds and tooling surfaces in wind energy, aerospace, marine, automotive, railway, and industrial composite manufacturing environments.
Technical Specifications
| Property | Specification |
|---|---|
| Material | PTFE (Polytetrafluoroethylene) Film |
| Product Type | PTFE Teflon Tape |
| Adhesive Type | High-Temperature Silicone Adhesive |
| Total Thickness | 0.08 mm – 0.18 mm (Custom Available) |
| Film Thickness | 0.05 mm – 0.13 mm |
| Width | 10 mm – 1000 mm (Custom Width Available) |
| Roll Length | 10 m / 33 m / Custom Roll Length |
| Color | Brown |
| Operating Temperature | -70°C to +260°C (Short-Term up to 300°C) |
| Surface Finish | Ultra Smooth Non-Stick Surface |
| Coefficient of Friction | Very Low |
| Chemical Resistance | Excellent Resistance to Acids, Alkalis, Solvents & Chemicals |
| Electrical Insulation | Excellent Dielectric Properties |
| Adhesion | High Bond Strength with Clean Residue-Free Removal |
| Applications | Composite Manufacturing, Vacuum Bagging, Prepreg Processing, Autoclave, Heat Sealing, Mold Protection & Industrial Processing |
| Storage Condition | Store in a cool, dry place below 30°C away from direct sunlight and humidity. |
