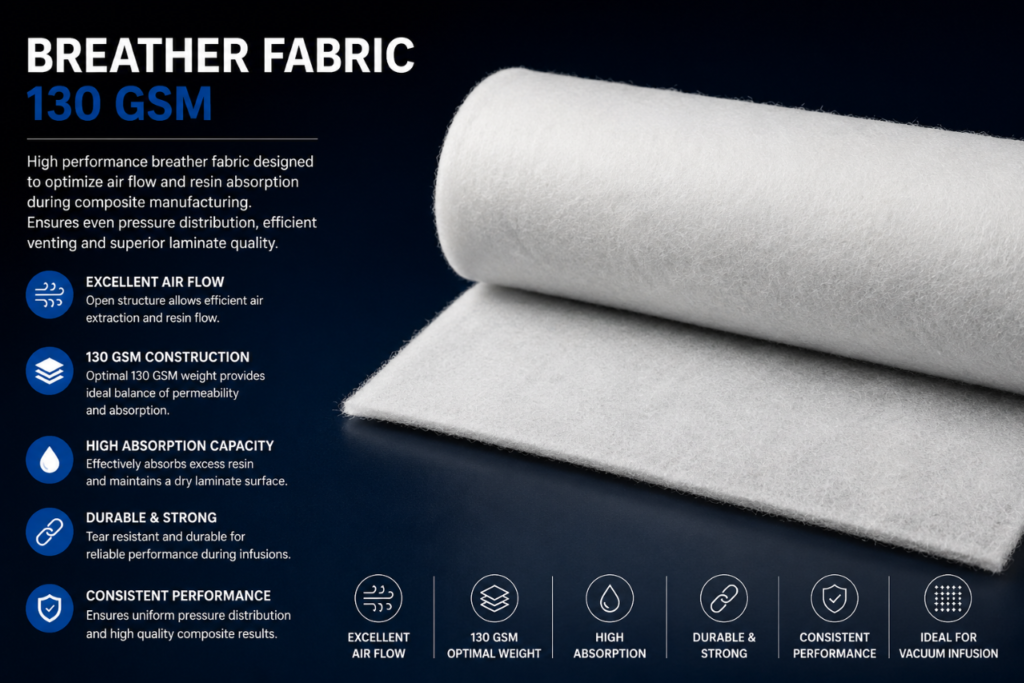

Breather Fabric 130 GSM
Description
Earth Composites’ Breather Fabric 130 GSM is a premium polyester breather fabric designed for vacuum bagging, vacuum infusion, prepreg curing, RTM, and autoclave composite manufacturing. Engineered to provide uniform air evacuation and vacuum pressure distribution, it effectively absorbs excess resin while ensuring consistent laminate consolidation and minimizing void formation. Manufactured from high-quality non-woven polyester fibers, it offers excellent breathability, thermal stability, and compatibility with epoxy, polyester, and vinyl ester resin systems. Ideal for wind energy, aerospace, marine, automotive, railway, and industrial composite applications requiring reliable vacuum performance and superior laminate quality.
Technical Specifications
| Property | Specification |
|---|---|
| Material | 100% Non-Woven Polyester Fabric |
| Product Type | Breather Fabric |
| Fabric Weight | 130 GSM (±5%) |
| Construction | Needle-Punched Non-Woven |
| Thickness | Approx. 1.40 mm |
| Air Permeability | High Air Flow for Uniform Vacuum Distribution |
| Resin Absorption | Excellent Excess Resin Absorption Capacity |
| Width | Up to 2000 mm (Custom Width Available) |
| Roll Length | 100 m / Custom Roll Length Available |
| Color | White |
| Operating Temperature | Up to 220°C |
| Resin Compatibility | Epoxy, Polyester & Vinyl Ester Resins |
| Process Compatibility | Vacuum Bagging, Vacuum Infusion, RTM, VARTM, Prepreg & Autoclave |
| Applications | Wind Turbine Blades, Aerospace, Marine, Automotive, Railway, FRP Panels & Industrial Composites |
| Storage Condition | Store in a cool, dry place away from direct sunlight, moisture, and contaminants. |
