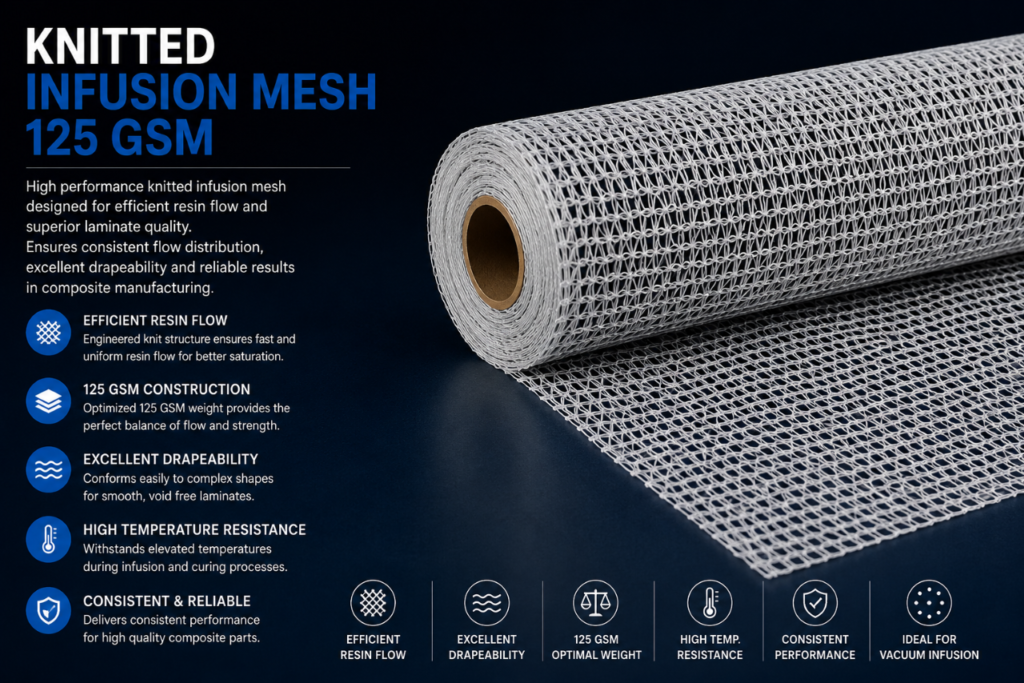

Knitted Infusion Mesh 125 GSM
Description
Earth Composites’ Knitted Infusion Mesh 125 GSM is a lightweight, high-performance resin flow media designed to optimize resin distribution in vacuum infusion, vacuum bagging, RTM, VARTM, and advanced composite manufacturing processes. Its engineered knitted structure ensures fast and uniform resin flow, minimizing dry spots while improving laminate quality and production efficiency. Compatible with epoxy, polyester, and vinyl ester resin systems, this infusion mesh is widely used in wind energy, aerospace, marine, automotive, railway, and industrial composite applications where precision and consistent resin infusion are essential.
Technical Specifications
| Property | Specification |
|---|---|
| Material | High-Performance Polyester Knitted Mesh |
| Product Type | Knitted Infusion Mesh |
| Fabric Weight | 125 GSM (±5%) |
| Mesh Construction | Warp Knitted Open Mesh Structure |
| Thickness | Approx. 0.95 mm |
| Width | Up to 1800 mm (Custom Width Available) |
| Roll Length | 100 m / Custom Roll Length Available |
| Color | Green |
| Operating Temperature | Up to 180°C |
| Resin Flow Performance | Fast & Uniform Resin Distribution |
| Vacuum Compatibility | Suitable for Full Vacuum Infusion Systems |
| Resin Compatibility | Epoxy, Polyester & Vinyl Ester Resins |
| Chemical Resistance | Excellent Resistance to Composite Resin Systems |
| Process Compatibility | Vacuum Infusion, Vacuum Bagging, RTM, VARTM & Light RTM |
| Applications | Wind Turbine Blades, Aerospace, Marine, Automotive, Railway, FRP Panels & Industrial Composites |
| Storage Condition | Store in a cool, dry place away from direct sunlight, dust, and moisture. |
