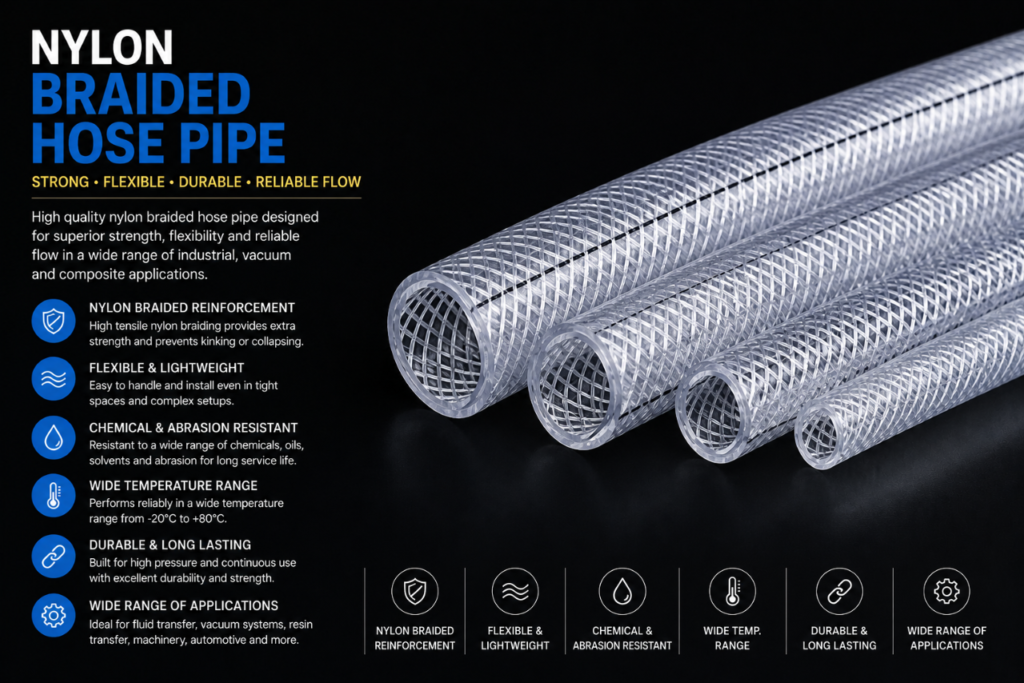

Nylon Braided Hose Pipe
Description
Earth Composites’ Nylon Braided Hose Pipe is a premium reinforced resin transfer hose engineered for vacuum infusion, vacuum bagging, RTM, VARTM, resin transfer, and advanced composite manufacturing applications. Constructed with a flexible PVC inner tube reinforced by a high-strength nylon braided layer, it offers superior pressure resistance, excellent flexibility, and outstanding durability. Compatible with epoxy, polyester, vinyl ester, and polyurethane resin systems, it ensures smooth resin flow, leak-free performance, and long service life in wind energy, aerospace, marine, automotive, railway, and industrial composite manufacturing.
Technical Specifications
| Property | Specification |
|---|---|
| Material | Flexible PVC with High-Strength Nylon Braided Reinforcement |
| Product Type | Nylon Braided Hose Pipe |
| Construction | 3-Layer Reinforced Braided Hose |
| Inner Diameter (ID) | 6 mm – 25 mm (Custom Sizes Available) |
| Outer Diameter (OD) | 10 mm – 30 mm |
| Working Pressure | 8 – 15 Bar (Depending on Hose Size) |
| Burst Pressure | 24 – 45 Bar |
| Wall Thickness | Approx. 2.0 – 3.5 mm |
| Color | Transparent with White Nylon Braiding |
| Operating Temperature | -10°C to +65°C |
| Vacuum Compatibility | Suitable for Resin Transfer & Vacuum Infusion Systems |
| Chemical Resistance | Excellent Resistance to Epoxy, Polyester & Vinyl Ester Resins |
| Flexibility | High Flexibility with Anti-Kink Performance |
| Standard Roll Length | 50 m / 100 m (Custom Length Available) |
| Applications | Vacuum Infusion, Resin Transfer, RTM, VARTM, Composite Manufacturing, Marine, Wind Energy, Aerospace, Automotive & Industrial Applications |
| Storage Condition | Store in a cool, dry place away from direct sunlight, excessive heat, and chemicals. |
| Shelf Life | 24 Months (Under Recommended Storage Conditions) |
