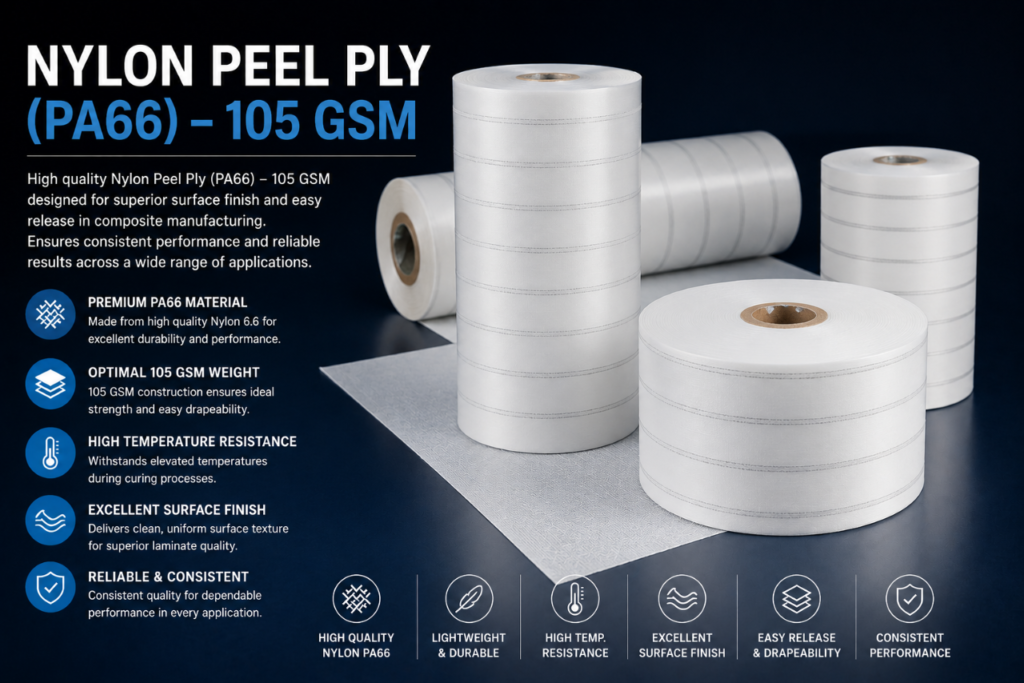

Nylon Peel Ply (PA66) – 105 GSM
Description
Earth Composites’ Nylon Peel Ply (PA66) – 105 GSM is a premium polyamide peel ply fabric engineered for vacuum bagging, vacuum infusion, RTM, VARTM, prepreg, and autoclave composite manufacturing. Manufactured from high-strength PA66 nylon, it creates a clean, textured laminate surface that enhances secondary bonding while eliminating sanding after curing. Designed for demanding composite applications, it offers excellent heat resistance, easy peel performance, and compatibility with epoxy, polyester, and vinyl ester resin systems. Ideal for wind energy, aerospace, marine, automotive, and industrial composite industries requiring superior surface preparation and consistent laminate quality.
Technical Specifications
| Property | Specification |
|---|---|
| Material | 100% PA66 (Polyamide 66) Woven Nylon Fabric |
| Product Type | Nylon Peel Ply (PA66) |
| Fabric Weight | 105 GSM (±5%) |
| Weave Pattern | Plain Weave |
| Thickness | 0.16 – 0.20 mm |
| Width | Up to 2000 mm (Custom Width Available) |
| Roll Length | 100 m / Custom Roll Length Available |
| Color | White with Red Tracer (Custom Available) |
| Operating Temperature | Up to 230°C |
| Tensile Strength | High Strength PA66 Fabric |
| Silicone Content | Silicone-Free |
| Peel Performance | Clean & Easy Removal After Cure |
| Resin Compatibility | Epoxy, Polyester & Vinyl Ester Resins |
| Process Compatibility | Vacuum Bagging, Vacuum Infusion, RTM, VARTM, Prepreg & Autoclave |
| Applications | Wind Energy, Aerospace, Marine, Automotive & Industrial Composites |
| Storage Condition | Store in a cool, dry place away from moisture, dust and direct sunlight. |
