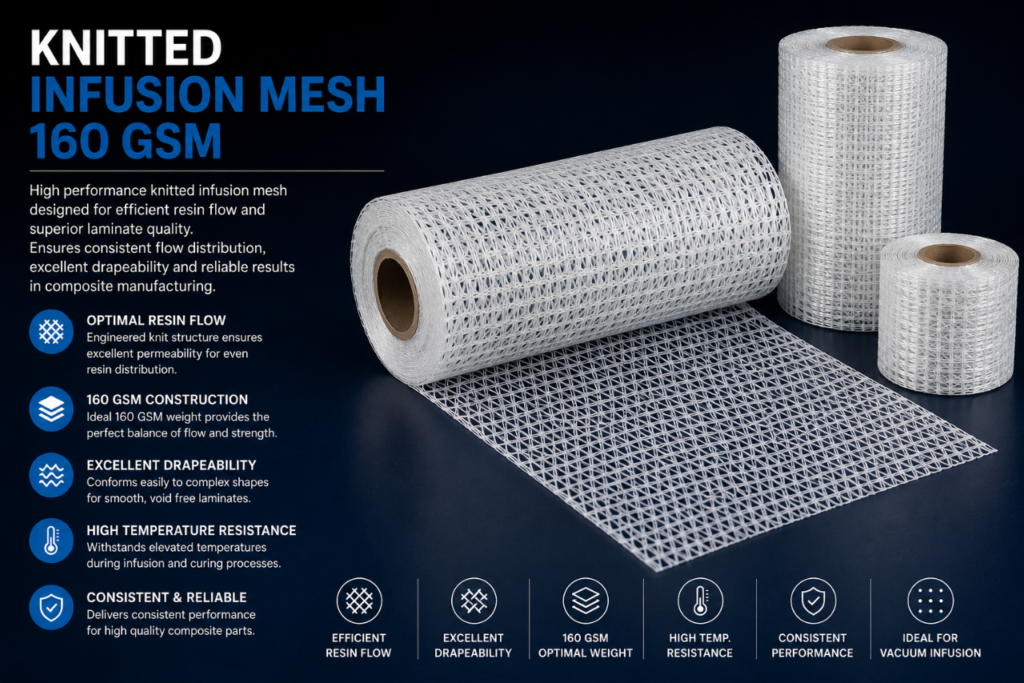

Knitted Infusion Mesh 160 GSM
Description
Earth Composites’ Knitted Infusion Mesh 160 GSM is a high-performance resin infusion mesh engineered to optimize resin distribution during vacuum infusion, vacuum bagging, RTM, VARTM, and advanced composite manufacturing. Manufactured from premium knitted polymer material, it ensures uniform resin flow, minimizes dry spots, and significantly reduces infusion time. Designed for compatibility with epoxy, polyester, and vinyl ester resin systems, it delivers consistent laminate quality, enhanced production efficiency, and reliable performance for wind energy, aerospace, marine, automotive, and industrial composite applications.
Technical Specifications
| Property | Specification |
|---|---|
| Material | High-Performance Polyester Knitted Mesh |
| Product Type | Knitted Infusion Mesh |
| Fabric Weight | 160 GSM (±5%) |
| Mesh Construction | Warp Knitted Structure |
| Thickness | Approx. 1.20 mm |
| Width | Up to 1800 mm (Custom Width Available) |
| Roll Length | 100 m / Custom Roll Length Available |
| Color | Green (Custom Colors Available) |
| Operating Temperature | Up to 180°C |
| Resin Flow Performance | High Flow Rate for Uniform Resin Distribution |
| Resin Compatibility | Epoxy, Polyester & Vinyl Ester Resins |
| Chemical Resistance | Excellent Resistance to Common Composite Resins |
| Process Compatibility | Vacuum Infusion, Vacuum Bagging, RTM, VARTM & Light RTM |
| Applications | Wind Energy, Aerospace, Marine, Automotive, FRP Panels & Industrial Composites |
| Storage Condition | Store in a clean, dry place away from direct sunlight and moisture. |
